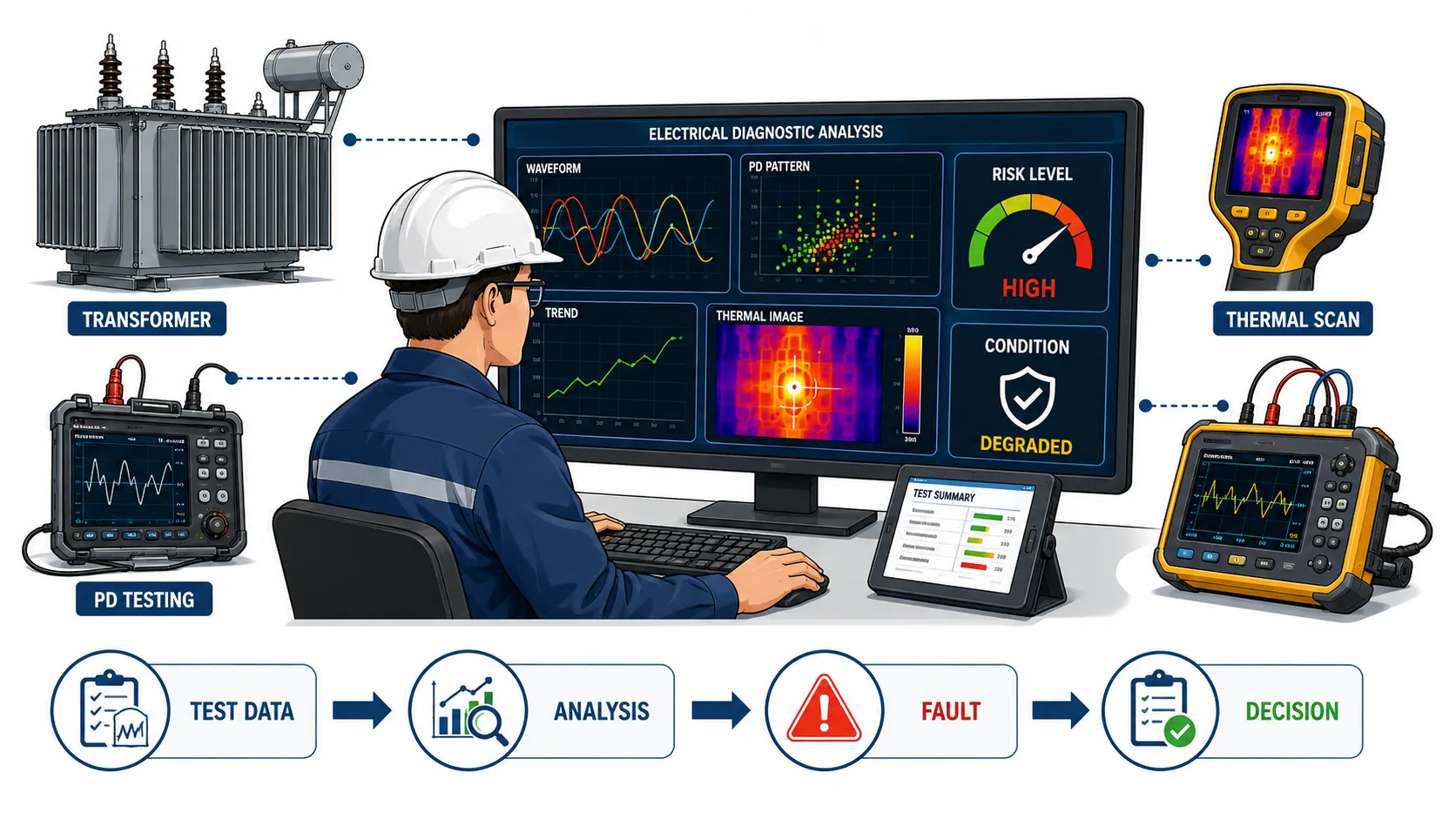

Lesson 3: Interpret complex test results and identify potential system failures.
Interpreting complex electrical test results and identifying potential system failures is a critical competency for advanced Electrical Quality Assurance and Quality Control (QA/QC) Engineers working on modern electrical installations and high-risk power systems. As electrical networks become increasingly sophisticated, engineers must be capable of analysing large volumes of diagnostic data generated through advanced inspection, testing, and Non-Destructive Evaluation (NDE) techniques. Accurate interpretation of test results enables early identification of developing faults, prevents unexpected equipment failures, and supports effective reliability management.
Complex electrical systems such as high-voltage transformers, switchgear assemblies, cable networks, protection systems, generators, and industrial power installations require detailed analysis of test parameters to determine their operational condition. Test results from methods such as partial discharge testing, insulation diagnostics, infrared thermography, power quality analysis, and advanced condition monitoring provide valuable information about hidden defects and deterioration mechanisms. However, these results require professional engineering judgement to distinguish normal operating variations from indicators of potential system failure.
This lesson focuses on developing the ability to critically interpret complex electrical test results and evaluate their significance within Electrical QA/QC processes. Learners will explore how Senior Electrical QA/QC Engineers analyse diagnostic information, identify abnormal trends, assess failure risks, and make evidence-based engineering decisions. The interpretation process involves understanding measurement principles, comparing results against acceptable performance criteria, analysing patterns, and determining appropriate corrective actions.
Advanced electrical testing analysis requires a systematic approach that considers equipment design, operating conditions, environmental influences, historical performance data, and potential failure mechanisms. By applying structured evaluation techniques, engineers can identify issues such as insulation degradation, overheating conditions, partial discharge activity, electrical instability, and component deterioration before they progress into major failures.
Through this lesson, learners will develop the professional skills required to evaluate complex test data, recognise early warning indicators, and support predictive maintenance strategies. The knowledge gained is essential for improving electrical system reliability, maintaining safety standards, ensuring compliance with engineering requirements, and enhancing the overall performance of critical electrical assets across industrial, commercial, and infrastructure projects.
1. Critically Analyse Complex Data Generated from Advanced Electrical Testing and NDE Procedures
Advanced electrical systems require highly accurate inspection, testing, and diagnostic processes to ensure reliability, safety, and long-term operational performance. Modern electrical installations such as high-voltage transformers, switchgear assemblies, cable networks, generators, motors, and industrial power distribution systems generate large amounts of technical data through advanced electrical testing and Non-Destructive Evaluation (NDE) procedures. The ability to critically analyse this complex data is a fundamental responsibility of Senior Electrical QA/QC Engineers because raw test results alone do not provide complete information about equipment health. Engineering judgement, technical interpretation, and systematic evaluation are required to convert testing data into meaningful decisions.
Complex electrical testing data may include measurements from partial discharge testing, insulation diagnostic procedures, infrared thermography, power quality monitoring, electrical parameter analysis, and condition monitoring systems. These data sets contain valuable information about hidden defects, degradation mechanisms, abnormal operating conditions, and potential failure risks. However, the interpretation of such information requires an advanced understanding of electrical engineering principles, equipment behaviour, material characteristics, and expected performance criteria.
Critical analysis of electrical test data involves more than identifying whether values are within acceptable limits. It requires evaluating trends, comparing results with historical performance, understanding relationships between different measurements, identifying abnormal patterns, and determining the possible causes behind detected issues. A professional Electrical QA/QC Engineer must assess whether a variation represents normal operational behaviour or an early indication of system deterioration.
The effective analysis of advanced electrical testing and NDE data supports predictive maintenance, improves asset reliability, reduces unexpected failures, and enables organisations to make evidence-based engineering decisions. Through structured data interpretation processes, engineers can identify potential problems before they develop into major electrical failures, ensuring safer and more efficient operation of critical electrical infrastructure.
Understanding Complex Electrical Testing and NDE Data
Definition of Complex Electrical Test Data Analysis
Complex electrical test data analysis is the systematic process of examining, interpreting, and evaluating large volumes of technical information generated from electrical testing procedures and NDE inspections to determine equipment condition, identify potential defects, and support engineering decisions.
The process involves:
- Reviewing test measurements.
- Evaluating abnormal conditions.
- Comparing results against accepted criteria.
- Identifying failure indicators.
- Determining corrective actions.
Unlike basic data review, complex analysis requires engineers to understand:
- Electrical system behaviour.
- Equipment design characteristics.
- Failure mechanisms.
- Testing limitations.
- Environmental influences.
For example, a partial discharge measurement showing increased activity does not automatically confirm equipment failure. The engineer must analyse:
- Discharge magnitude.
- Discharge pattern.
- Location.
- Historical trend.
- Operating conditions.
This ensures that conclusions are based on technical evidence rather than isolated readings.
Importance of Advanced Data Interpretation in Electrical QA/QC
Electrical QA/QC processes depend heavily on accurate interpretation of inspection and testing information. Incorrect analysis of test data may result in:
- Missed defects.
- Unnecessary equipment replacement.
- Incorrect maintenance decisions.
- Increased operational risks.
Advanced interpretation allows engineers to:
- Detect early-stage degradation.
- Assess equipment health.
- Predict possible failures.
- Improve maintenance strategies.
The importance of complex data analysis includes:
- Ensuring electrical system reliability.
- Supporting compliance requirements.
- Improving safety performance.
- Reducing downtime.
- Optimising asset management.
Senior Electrical QA/QC Engineers use analysed data to provide recommendations regarding:
- Continued operation.
- Maintenance requirements.
- Equipment refurbishment.
- Asset replacement.
Sources of Complex Electrical Data
Partial Discharge Testing Data
Partial discharge testing generates detailed information about insulation performance in high-voltage electrical equipment.
The data may include:
- Discharge magnitude.
- Discharge frequency.
- Phase relationship.
- Discharge patterns.
- Signal characteristics.
Critical analysis helps engineers determine:
- Whether insulation deterioration exists.
- The severity of degradation.
- Possible defect location.
- Future failure probability.
Important evaluation factors include:
- Increasing discharge trends.
- Repeated abnormal patterns.
- Changes compared with previous measurements.
- Correlation with equipment operating conditions.
For example, increasing partial discharge activity in a transformer may indicate developing insulation problems requiring further investigation.
Insulation Diagnostic Data
Insulation testing provides information about the electrical condition of insulation materials.
Common data parameters include:
- Insulation resistance.
- Dielectric losses.
- Polarisation index.
- Capacitance values.
Analysis of insulation data helps identify:
- Moisture contamination.
- Ageing effects.
- Insulation weakness.
- Reduced dielectric performance.
Engineers must evaluate whether changes are:
- Temporary operational variations.
- Environmental influences.
- Indicators of long-term deterioration.
Thermal Imaging Data
Infrared thermography produces thermal images showing temperature distribution across electrical components.
The analysis focuses on:
- Hot spots.
- Temperature differences.
- Abnormal heating patterns.
- Thermal trends.
Common fault indicators include:
- Loose electrical connections.
- Increased contact resistance.
- Overloaded conductors.
- Cooling problems.
However, engineers must consider:
- Equipment loading conditions.
- Ambient temperature.
- Surface characteristics.
- Inspection distance.
A high temperature reading alone does not always indicate failure. It must be analysed in context.
Power Quality Analysis Data
Power quality monitoring generates information related to electrical supply performance.
Data may include:
- Voltage fluctuations.
- Harmonic distortion.
- Frequency variations.
- Current imbalance.
Analysis helps identify:
- Equipment stress.
- Supply problems.
- System instability.
Power quality issues may contribute to:
- Premature equipment ageing.
- Reduced efficiency.
- Electronic equipment failures.
Condition Monitoring Data
Modern electrical systems increasingly use digital monitoring systems that continuously collect operational information.
These systems provide:
- Real-time measurements.
- Historical trends.
- Automated warnings.
- Performance indicators.
Critical analysis enables engineers to identify:
- Gradual deterioration.
- Changing operating conditions.
- Emerging failure risks.
Principles of Critical Data Analysis
Data Accuracy and Reliability Assessment
Before analysing electrical test data, engineers must verify data quality.
Important checks include:
- Calibration status of testing equipment.
- Testing procedure compliance.
- Measurement accuracy.
- Environmental conditions.
Reliable analysis requires:
- Correct testing methods.
- Proper instrument settings.
- Competent personnel.
- Accurate documentation.
Poor-quality data can lead to incorrect conclusions and ineffective maintenance decisions.
Trend Analysis and Pattern Recognition
Trend analysis is one of the most important techniques used in electrical condition assessment.
Instead of analysing a single measurement, engineers evaluate changes over time.
Trend analysis helps identify:
- Gradual insulation degradation.
- Increasing thermal stress.
- Changing discharge activity.
- Progressive equipment deterioration.
Benefits include:
- Early warning capability.
- Better failure prediction.
- Improved maintenance planning.
For example:
A transformer temperature increase over several months may indicate developing cooling problems even if current values remain within acceptable limits.
Comparison Against Engineering Criteria
Electrical test results must be compared against:
- Manufacturer recommendations.
- Engineering specifications.
- Previous performance data.
- Applicable standards.
Comparison helps engineers determine:
- Acceptable operating condition.
- Need for further investigation.
- Required corrective actions.
The evaluation should consider:
- Equipment age.
- Operating environment.
- Loading conditions.
- Previous maintenance history.
Evaluation of Abnormal Conditions
Critical analysis requires identifying abnormal patterns within test results.
Possible abnormal indicators include:
- Sudden measurement changes.
- Continuous deterioration trends.
- Unexpected performance variations.
Engineers evaluate:
- Severity.
- Probability of failure.
- Operational consequences.
The objective is to determine whether immediate action is required.
Advanced Electrical Testing Data Interpretation Process
Step 1: Data Collection and Validation
The first stage involves collecting reliable information from testing procedures.
Activities include:
- Reviewing test reports.
- Confirming measurement accuracy.
- Checking equipment identification.
- Verifying testing conditions.
Engineers ensure that:
- Data is complete.
- Measurements are reliable.
- Testing procedures were correctly followed.
Step 2: Data Classification and Organisation
Complex data must be organised before analysis.
Classification may include:
- Equipment type.
- Test method.
- Measurement category.
- Historical comparison.
Organisation helps engineers identify:
- Patterns.
- Relationships.
- Performance changes.
Step 3: Technical Analysis and Evaluation
During analysis, engineers examine:
- Measurement values.
- Trends.
- Abnormal indicators.
- Possible causes.
The process includes:
- Comparing results.
- Evaluating defect probability.
- Assessing equipment condition.

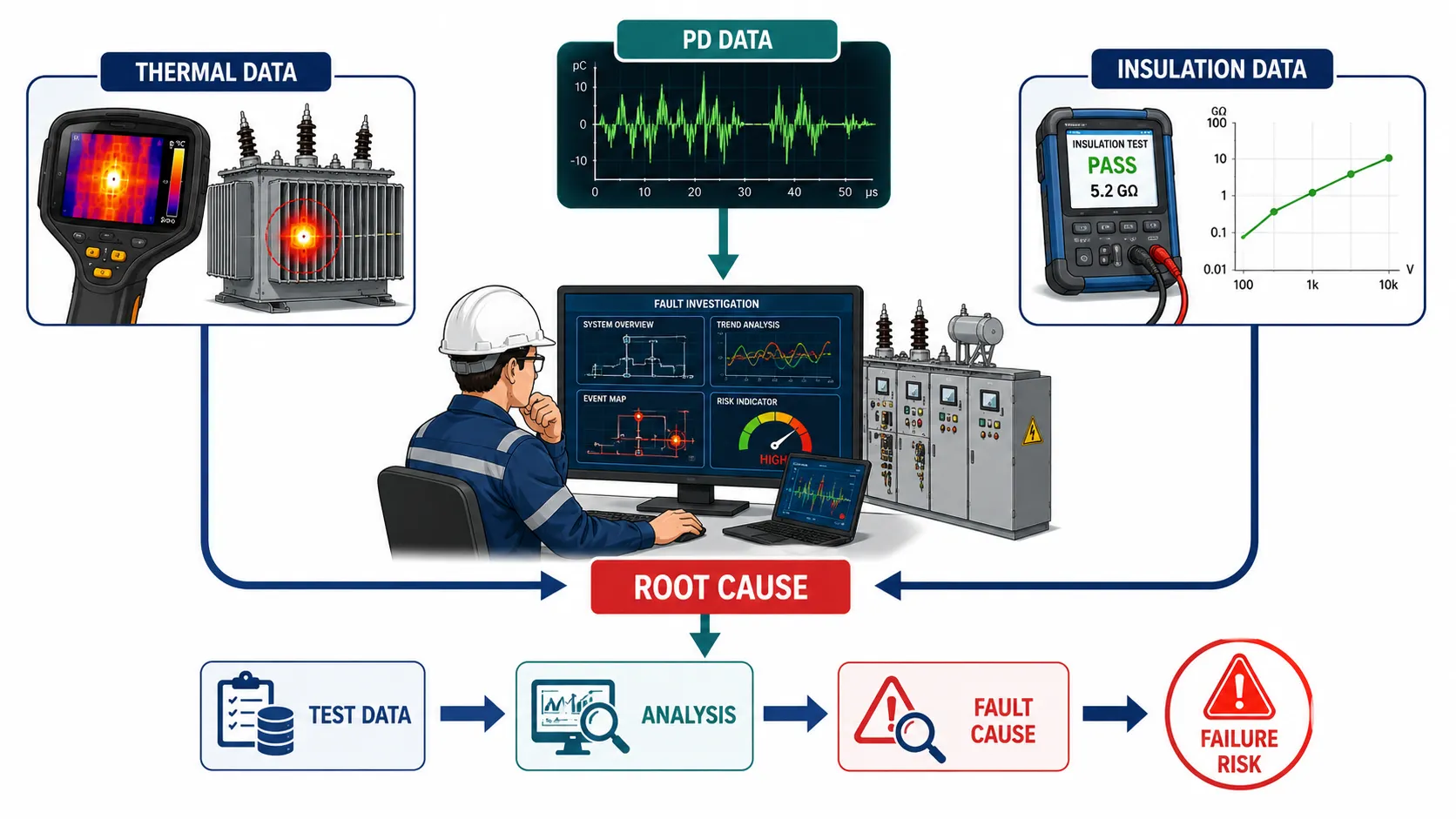

Step 4: Failure Risk Identification
After analysing results, engineers determine possible failure risks.
Risk evaluation considers:
- Defect severity.
- Equipment importance.
- Failure consequences.
Potential outcomes include:
- Normal operation.
- Increased monitoring.
- Planned maintenance.
- Immediate intervention.
Step 5: Engineering Decision-Making
The final stage converts technical findings into practical decisions.
Decisions may involve:
- Continuing operation.
- Scheduling repairs.
- Replacing components.
- Increasing inspection frequency.
Effective decisions require:
- Technical knowledge.
- Professional judgement.
- Risk evaluation.
Analysis of NDE Procedure Results
Identifying Hidden Electrical Defects
Advanced NDE procedures help identify defects that cannot be detected through visual inspection.
Examples include:
- Internal insulation voids.
- Partial discharge activity.
- Thermal abnormalities.
- Material degradation.
Critical analysis allows engineers to determine:
- Defect location.
- Defect severity.
- Potential consequences.
Evaluating Equipment Degradation
Equipment degradation develops gradually due to:
- Ageing.
- Electrical stress.
- Thermal effects.
- Environmental conditions.
Data analysis helps evaluate:
- Remaining service life.
- Reliability level.
- Maintenance requirements.
Assessing Failure Development Patterns
Engineers analyse whether defects are:
- Stable.
- Increasing.
- Rapidly developing.
Understanding failure progression supports:
- Preventive action.
- Reduced downtime.
- Improved safety.
Advanced Data Analysis Techniques in Electrical QA/QC
Statistical Analysis
Statistical evaluation helps engineers identify abnormal variations within large data sets.
Applications include:
- Comparing measurements.
- Identifying trends.
- Evaluating performance changes.
Benefits include:
- Improved accuracy.
- Better prediction capability.
- Evidence-based decisions.
Condition-Based Assessment
Condition-based assessment uses actual equipment performance data to determine maintenance requirements.
Advantages include:
- Reduced unnecessary maintenance.
- Improved asset reliability.
- Better resource allocation.
Predictive Failure Analysis
Predictive analysis uses historical and current data to forecast possible failures.
It helps identify:
- Emerging problems.
- Failure probability.
- Maintenance priorities.
Digital Monitoring and Diagnostic Systems
Modern systems use:
- Sensors.
- Data acquisition platforms.
- Automated analysis tools.
These technologies provide:
- Continuous monitoring.
- Real-time alerts.
- Improved decision support.
Professional Comparison Table: Advanced Electrical Testing and NDE Data Analysis
| Testing/NDE Method | Generated Data | Analysis Purpose | Possible Failure Indicators |
|---|---|---|---|
| Partial Discharge Testing | Discharge patterns and signal levels | Evaluate insulation condition | Increasing discharge activity |
| Insulation Testing | Resistance and dielectric measurements | Assess insulation performance | Reduced insulation strength |
| Infrared Thermography | Temperature distribution images | Identify thermal abnormalities | Hot spots and overheating |
| Power Quality Analysis | Voltage and current parameters | Evaluate electrical system stability | Harmonics and voltage variation |
| Condition Monitoring | Real-time operational data | Predict equipment behaviour | Performance deterioration |
Practical Application of Complex Test Data Analysis
Transformer Condition Assessment
A high-voltage transformer underwent advanced diagnostic testing after showing abnormal operating trends.
Testing included:
- Partial discharge analysis.
- Insulation testing.
- Thermal monitoring.
Data analysis identified:
- Increased discharge activity.
- Rising operating temperatures.
- Reduced insulation performance.
Engineering decisions included:
- Additional monitoring.
- Planned maintenance.
- Risk reduction actions.
High Voltage Cable Analysis
A cable system required condition evaluation due to ageing concerns.
Analysis of test data identified:
- Insulation degradation indicators.
- Potential failure locations.
The engineering team implemented:
- Targeted maintenance.
- Increased inspection frequency.
Switchgear Diagnostic Evaluation
A switchgear assembly experienced repeated operational issues.
Testing data from:
- Thermal imaging.
- Ultrasonic inspection.
identified:
- Overheating connections.
- Electrical discharge activity.
Corrective action prevented possible equipment failure.
Case Study: Analysis of Complex Electrical Test Results
Project Background
An industrial facility required evaluation of critical electrical assets, including transformers, switchgear, and cable systems. The objective was to identify potential failures before they affected production operations.
Data Evaluation Process
Engineers collected information from:
- Partial discharge testing.
- Thermal imaging.
- Insulation diagnostics.
- Condition monitoring systems.
The data was analysed by:
- Comparing historical results.
- Identifying abnormal trends.
- Evaluating failure risks.
Failure Identification
Analysis revealed:
- Early insulation deterioration.
- Abnormal thermal behaviour.
- Increased electrical discharge activity.
Engineering Actions
The facility implemented:
- Preventive maintenance.
- Component repair.
- Enhanced monitoring procedures.
Final Outcome
The structured analysis process resulted in:
- Reduced failure risk.
- Improved equipment reliability.
- Better maintenance planning.
- Increased operational safety.
Key Benefits of Effective Electrical Data Analysis
Critical analysis of electrical testing and NDE data provides:
- Early identification of hidden defects.
- Improved reliability assessment.
- Reduced unexpected failures.
- Better maintenance decisions.
- Enhanced safety performance.
- Improved compliance assurance.
- Extended equipment lifespan.
Best Practices for Electrical QA/QC Professionals
Electrical QA/QC professionals should:
- Validate all testing data before interpretation.
- Understand equipment failure mechanisms.
- Analyse trends rather than isolated readings.
- Compare results against engineering criteria.
- Consider environmental influences.
- Use multiple data sources when required.
- Maintain accurate inspection records.
- Apply professional judgement during decision-making.
Conclusion
Critical analysis of complex data generated from advanced electrical testing and NDE procedures is essential for maintaining reliable and safe electrical systems. Modern electrical assets produce large amounts of diagnostic information, but the true value of this data depends on accurate interpretation and engineering evaluation.
Senior Electrical QA/QC Engineers must understand testing principles, analyse trends, identify abnormal conditions, and determine the significance of detected variations. By applying structured data analysis processes, engineers can identify hidden defects, predict potential failures, and develop effective maintenance strategies.
Advanced interpretation of electrical testing and NDE data supports improved reliability, enhanced safety, reduced downtime, and better lifecycle management of critical electrical assets. Through effective analysis and evidence-based decision-making, organisations can ensure that electrical systems continue to operate efficiently, safely, and in compliance with professional engineering requirements.
2. Interpret Multifaceted Test Results to Determine the Current Operational Health of an Electrical System
Modern electrical systems operate within increasingly complex environments where reliability, safety, and continuous performance are critical requirements. High-voltage transformers, switchgear assemblies, electrical distribution networks, industrial motors, generators, and cable systems are exposed to continuous electrical, thermal, mechanical, and environmental stresses. To ensure these systems remain safe and operational, Electrical Quality Assurance and Quality Control (QA/QC) Engineers must be able to interpret multifaceted test results and determine the current operational health of electrical assets.
Multifaceted test results refer to multiple sources of technical information collected through advanced electrical testing, condition monitoring, and Non-Destructive Evaluation (NDE) procedures. These results may include insulation resistance measurements, partial discharge data, thermal imaging results, power quality parameters, electrical waveform analysis, and historical performance trends. Individually, each result provides limited information; however, when analysed collectively, they provide a comprehensive understanding of equipment condition and potential failure risks.
The interpretation of complex electrical test data requires advanced engineering knowledge, analytical capability, and professional judgement. A Senior Electrical QA/QC Engineer must evaluate whether test results indicate normal operational behaviour, early-stage deterioration, or a developing system failure. This involves comparing current measurements against acceptable performance criteria, analysing trends over time, understanding equipment operating conditions, and identifying relationships between different test parameters.
Accurate interpretation of electrical system health data supports predictive maintenance strategies, improves asset reliability, reduces unexpected failures, and enhances electrical safety. By effectively analysing multifaceted test results, engineers can determine the current condition of electrical systems and recommend appropriate actions to maintain long-term operational performance.
Understanding Multifaceted Electrical Test Results
Definition of Multifaceted Test Result Interpretation
Multifaceted test result interpretation is the structured process of analysing multiple electrical testing outputs and diagnostic information to evaluate the operational condition, reliability, and performance of an electrical system.
Unlike basic inspection activities that focus on individual measurements, multifaceted interpretation considers:
- Multiple testing methods.
- Equipment operating conditions.
- Historical performance data.
- Environmental influences.
- Failure mechanisms.
- Risk levels.
The objective is not only to identify whether a measurement is acceptable but also to understand what the combined results indicate about the overall health of the electrical system.
For example, a transformer may produce several test results:
- Partial discharge activity.
- Insulation resistance values.
- Temperature measurements.
- Oil condition data.
A single abnormal value may not confirm failure, but combined analysis may indicate developing insulation deterioration.
Importance of Operational Health Assessment
Operational health assessment determines whether an electrical system is:
- Operating normally.
- Showing early signs of deterioration.
- Requiring maintenance intervention.
- Approaching potential failure.
Accurate assessment helps organisations:
- Prevent unexpected equipment breakdowns.
- Improve maintenance planning.
- Reduce operational risks.
- Extend equipment lifespan.
- Maintain compliance with engineering requirements.
The operational health of an electrical system depends on several factors:
- Equipment condition.
- Loading conditions.
- Electrical performance.
- Thermal behaviour.
- Insulation integrity.
- Historical degradation trends.
Senior Electrical QA/QC Engineers use test interpretation to make informed decisions about continued operation, maintenance requirements, and risk mitigation.
Sources of Electrical System Health Data
Electrical Testing Data
Electrical testing provides direct measurements regarding equipment performance and internal condition.
Common electrical testing data includes:
- Insulation resistance measurements.
- Dielectric test results.
- Voltage and current readings.
- Resistance measurements.
- Power factor values.
These results help engineers evaluate:
- Insulation condition.
- Electrical stability.
- Component performance.
- Potential degradation.
For example, declining insulation resistance values over time may indicate insulation ageing or moisture contamination.
NDE Inspection Results
Non-Destructive Evaluation techniques provide valuable information about hidden defects without damaging electrical components.
Common NDE data sources include:
Partial Discharge Testing
Provides information about:
- Internal insulation defects.
- Electrical discharge activity.
- Insulation deterioration trends.
Infrared Thermography
Provides information about:
- Temperature variations.
- Overheating areas.
- Connection problems.
Ultrasonic Inspection
Provides information about:
- Corona discharge.
- Electrical arcing.
- Abnormal acoustic emissions.
NDE results allow engineers to detect problems that may not be visible through conventional inspection.
Condition Monitoring Information
Modern electrical systems increasingly use continuous monitoring technologies.
Condition monitoring systems provide:
- Real-time equipment data.
- Performance trends.
- Automated warnings.
- Long-term operational information.
Examples include:
- Transformer monitoring systems.
- Motor condition monitoring.
- Digital protection systems.
Advantages include:
- Early fault identification.
- Continuous reliability assessment.
- Improved maintenance decisions.
Historical Performance Data
Historical records are essential for accurate interpretation.
Engineers analyse:
- Previous test results.
- Maintenance history.
- Failure records.
- Operating patterns.
Historical comparison helps determine whether equipment condition is:
- Improving.
- Stable.
- Gradually deteriorating.
- Rapidly declining.
Principles of Operational Health Evaluation
Assessing Equipment Performance
The first principle of operational health evaluation is understanding expected equipment behaviour.
Engineers evaluate:
- Rated operating conditions.
- Manufacturer recommendations.
- Design performance requirements.
Assessment includes:
- Electrical performance.
- Thermal performance.
- Mechanical condition.
- Insulation integrity.
A healthy electrical system should demonstrate:
- Stable operating parameters.
- Consistent performance.
- No significant degradation trends.
Identifying Abnormal Conditions
Abnormal conditions may indicate developing failures.
Common warning indicators include:
- Increasing temperature levels.
- Reduced insulation performance.
- Rising discharge activity.
- Unstable electrical parameters.
Engineers must determine:
- Severity of abnormality.
- Possible causes.
- Required response.
Not every abnormal reading requires immediate shutdown. Professional evaluation is required.
Evaluating Data Relationships
Complex electrical assessment requires understanding relationships between different test results.
For example:
A transformer showing:
- Increased partial discharge activity.
- Reduced insulation resistance.
- Higher operating temperature.
may indicate developing insulation failure.
However, a single parameter change may have several possible causes.
Engineers evaluate:
- Correlation between measurements.
- Equipment history.
- Operating conditions.
Determining System Reliability
Reliability assessment determines whether equipment can continue operating safely.
Factors considered include:
- Current condition.
- Remaining service life.
- Failure probability.
- Operational importance.
The assessment supports decisions regarding:
- Maintenance.
- Repair.
- Replacement.
- Increased monitoring.
Process for Interpreting Complex Test Results
Data Collection and Verification
The first step is ensuring test information is accurate and reliable.
Engineers verify:
- Testing equipment calibration.
- Measurement accuracy.
- Testing procedures.
- Environmental conditions.
Important considerations include:
- Was the test performed correctly?
- Were operating conditions suitable?
- Are results consistent with previous measurements?
Data Correlation and Comparison
After verification, results are compared with:
- Previous test data.
- Manufacturer specifications.
- Engineering standards.
Correlation helps identify:
- Performance changes.
- Degradation patterns.
- Possible failure causes.
Example:
A gradual increase in transformer temperature over several months may indicate cooling system deterioration.
Technical Evaluation
Technical evaluation involves analysing:
- Measurement values.
- Trends.
- Failure indicators.
- Risk implications.
Engineers determine:
- Normal operation.
- Early warning condition.
- Critical condition.
Health Condition Classification
Electrical system health can be classified into categories:
Normal Condition
Characteristics:
- Stable measurements.
- No significant defects.
- Expected performance.
Warning Condition
Characteristics:
- Minor abnormalities.
- Early degradation signs.
- Increased monitoring required.
Critical Condition
Characteristics:
- Serious defects.
- High failure probability.
- Immediate action required.
Engineering Decision-Making
Final decisions are based on:
- Technical analysis.
- Risk assessment.
- Operational requirements.
Possible actions include:
- Continue operation.
- Schedule maintenance.
- Increase monitoring.
- Replace components.
Interpretation of Advanced Electrical Testing Results
Transformer Health Assessment
Transformers require detailed interpretation because they contain complex insulation and electrical systems.
Important indicators include:
- Partial discharge levels.
- Insulation resistance.
- Temperature behaviour.
- Dielectric performance.
Engineers analyse:
- Trend development.
- Fault severity.
- Operational impact.
Possible failure indicators include:
- Increasing discharge activity.
- Reduced insulation performance.
- Abnormal thermal behaviour.
Cable System Evaluation
High-voltage cables require analysis of:
- Insulation condition.
- Electrical stress effects.
- Ageing behaviour.
Test interpretation considers:
- Partial discharge results.
- Insulation measurements.
- Historical performance.
Potential problems include:
- Insulation breakdown.
- Moisture penetration.
- Cable joint deterioration.
Switchgear Condition Analysis
Switchgear reliability depends on:
- Connection integrity.
- Thermal performance.
- Electrical insulation condition.
Engineers interpret:
- Thermal images.
- Ultrasonic signals.
- Electrical measurements.
Warning indicators include:
- Hot connection points.
- Electrical discharge activity.
- Abnormal resistance values.
Rotating Equipment Assessment
Motors and generators require evaluation of:
- Insulation condition.
- Electrical balance.
- Operating temperature.
Analysis helps identify:
- Winding problems.
- Thermal stress.
- Performance deterioration.
Key Indicators of Electrical System Health
Normal Operating Indicators
Healthy electrical systems demonstrate:
- Stable electrical parameters.
- Consistent thermal behaviour.
- Acceptable insulation performance.
- No significant fault indicators.
Early Warning Indicators
Early deterioration may include:
- Slight temperature increases.
- Increasing partial discharge activity.
- Small insulation performance reductions.
- Changing operational trends.
Early detection allows planned intervention.
Critical Failure Indicators
Critical indicators include:
- Rapid degradation trends.
- Severe overheating.
- Significant insulation failure.
- Major electrical instability.
Immediate action may be required.
Professional Comparison Table: Electrical Health Assessment Through Test Interpretation
| Test Method | Data Generated | Health Assessment Purpose | Possible Condition Indicator |
|---|---|---|---|
| Partial Discharge Testing | Discharge patterns and intensity | Evaluate insulation condition | Increasing discharge activity |
| Insulation Testing | Resistance and dielectric values | Assess insulation performance | Reduced insulation strength |
| Infrared Thermography | Temperature distribution images | Identify thermal problems | Hot spots and overheating |
| Power Quality Analysis | Voltage and current characteristics | Evaluate system stability | Harmonic distortion or imbalance |
| Condition Monitoring | Real-time operational data | Predict equipment behaviour | Performance deterioration |
Practical Examples
Example 1: Transformer Operational Health Evaluation
A power facility conducted advanced testing on an ageing transformer.
Collected data included:
- Partial discharge results.
- Thermal images.
- Insulation measurements.
Analysis identified:
- Increasing discharge activity.
- Reduced insulation performance.
- Abnormal temperature patterns.
Engineering action:
- Maintenance intervention planned.
- Monitoring frequency increased.
Outcome:
- Reduced failure risk.
- Improved transformer reliability.
Example 2: High Voltage Cable Condition Assessment
A distribution company evaluated ageing underground cables.
Test results showed:
- Reduced insulation performance.
- Increased degradation indicators.
The engineering team:
- Identified high-risk cable sections.
- Planned targeted replacement.
This prevented unnecessary replacement of healthy sections.
Example 3: Industrial Switchgear Health Monitoring
An industrial plant experienced operational interruptions.
Analysis of:
- Thermal inspection data.
- Ultrasonic results.
identified:
- Loose electrical connection.
- Early electrical discharge.
Corrective action restored reliable operation.
Case Study: Multifaceted Test Result Interpretation for Electrical Asset Reliability
Project Background
A manufacturing facility required assessment of critical electrical equipment supplying production operations.
The assets included:
- High-voltage transformer.
- Switchgear system.
- Distribution cables.
The objective was to identify potential failures before production disruption occurred.
Test Result Interpretation Process
Engineers collected:
- Electrical test results.
- NDE inspection data.
- Historical performance information.
The analysis involved:
- Comparing current results with previous data.
- Identifying abnormal trends.
- Evaluating failure risks.
Health Assessment Outcome
The assessment identified:
- Transformer insulation degradation.
- Switchgear overheating.
- Cable ageing concerns.
Engineering Actions
The facility implemented:
- Planned maintenance.
- Component repair.
- Increased monitoring.
Final Result
The organisation achieved:
- Improved electrical reliability.
- Reduced unexpected downtime.
- Better asset management.
Key Benefits of Accurate Test Result Interpretation
Effective interpretation provides:
- Early fault detection.
- Improved reliability.
- Reduced maintenance costs.
- Better decision-making.
- Enhanced electrical safety.
- Increased equipment lifespan.
- Improved compliance performance.
Best Practices for Electrical QA/QC Professionals
Electrical QA/QC Engineers should:
- Analyse multiple data sources together.
- Avoid relying on single measurements.
- Understand equipment failure mechanisms.
- Compare results with historical trends.
- Consider environmental conditions.
- Apply professional engineering judgement.
- Maintain accurate testing records.
- Use risk-based assessment approaches.
Conclusion
Interpreting multifaceted test results is a critical skill for Senior Electrical QA/QC Engineers responsible for maintaining reliable and safe electrical systems. Modern electrical assets generate complex diagnostic information through advanced testing and NDE procedures, but the true value of this information depends on accurate analysis and professional interpretation.
By evaluating electrical test results, NDE findings, historical trends, and operational conditions together, engineers can determine the current health of electrical systems and identify potential failure risks before they become critical problems. A structured interpretation process supports predictive maintenance, improves reliability, reduces downtime, and enhances safety performance.
Advanced interpretation of electrical system health data enables organisations to make informed engineering decisions, optimise asset performance, and ensure long-term operational reliability across industrial, commercial, and infrastructure electrical applications.
3. the Root Causes of Potential System Failures by Synthesising Interacting Testing Variables
Identifying the root causes of potential electrical system failures is a critical responsibility of Senior Electrical QA/QC Engineers involved in advanced inspection, testing, and Non-Destructive Evaluation (NDE) activities. Modern electrical systems consist of interconnected components that operate under complex electrical, thermal, mechanical, and environmental conditions. When a failure indicator appears, the visible symptom is often not the actual cause. Therefore, engineers must analyse multiple interacting testing variables to determine the fundamental reasons behind equipment deterioration or system malfunction.
Electrical failures rarely occur due to a single isolated factor. In most cases, failures develop through a combination of contributing variables such as insulation ageing, excessive thermal stress, electrical overloading, environmental contamination, poor maintenance practices, and operational conditions. Advanced electrical testing procedures generate large volumes of diagnostic data, including partial discharge measurements, insulation test results, thermal patterns, power quality parameters, and condition monitoring information. The challenge for Electrical QA/QC professionals is to synthesise these different data sources and identify meaningful relationships that reveal the true root cause.
Root cause identification requires a systematic engineering approach that combines technical analysis, historical performance evaluation, equipment knowledge, and professional judgement. A Senior Electrical QA/QC Engineer must distinguish between symptoms and causes, evaluate failure mechanisms, and determine which interacting variables contributed most significantly to the developing problem.
By effectively synthesising testing variables, engineers can identify potential failures before catastrophic breakdown occurs, improve maintenance strategies, reduce operational risks, and enhance the reliability of electrical systems across industrial, commercial, and infrastructure applications.
Understanding Root Cause Identification in Electrical Systems
Definition of Root Cause Analysis in Electrical QA/QC
Root Cause Analysis (RCA) is a structured engineering investigation process used to identify the fundamental reasons behind equipment failures, abnormal conditions, or performance deterioration within electrical systems.
In electrical QA/QC engineering, root cause analysis involves:
- Evaluating testing and inspection data.
- Identifying failure symptoms.
- Analysing contributing factors.
- Establishing relationships between variables.
- Determining the primary failure mechanism.
- Developing appropriate corrective actions.
The purpose of RCA is not simply to identify what failed but to understand:
- Why the failure occurred.
- How the failure developed.
- Which factors contributed to the failure.
- How similar failures can be prevented.
For example, an overheating electrical connection may appear to be caused by excessive temperature. However, deeper analysis may reveal that the actual root cause was:
- Incorrect installation torque.
- Increased contact resistance.
- Poor maintenance practices.
- Environmental contamination.
Importance of Identifying Failure Origins
Accurate root cause identification is essential because treating only the visible problem may not prevent future failures.
Effective RCA helps organisations:
- Prevent repeated equipment failures.
- Improve maintenance strategies.
- Increase electrical system reliability.
- Reduce operational downtime.
- Enhance safety performance.
The importance of root cause analysis includes:
- Moving from reactive maintenance to predictive maintenance.
- Improving equipment lifecycle management.
- Supporting evidence-based engineering decisions.
- Reducing unnecessary replacement costs.
Electrical QA/QC Engineers use root cause findings to improve:
- Inspection procedures.
- Testing frequency.
- Maintenance planning.
- Installation practices.
- Quality control processes.
Understanding Interacting Testing Variables
Electrical Performance Variables
Electrical performance parameters provide essential information about system operation and possible degradation.
Common electrical variables include:
- Voltage levels.
- Current measurements.
- Resistance values.
- Power factor.
- Harmonic distortion.
- Insulation resistance.
These variables help engineers identify:
- Electrical stress conditions.
- Overloading problems.
- Insulation weaknesses.
- Power quality issues.
For example:
An increase in current imbalance in a motor system may indicate:
- Supply problems.
- Winding deterioration.
- Mechanical loading issues.
The engineer must analyse related variables before identifying the actual cause.
Thermal Variables
Thermal behaviour is a major indicator of electrical system health.
Temperature-related variables include:
- Equipment operating temperature.
- Hot spot locations.
- Temperature rise patterns.
- Cooling performance.
Thermal abnormalities may result from:
- Loose connections.
- Excessive resistance.
- Overloading.
- Cooling system failure.
However, temperature alone does not identify the complete failure cause. It must be analysed together with:
- Electrical measurements.
- Equipment loading.
- Historical temperature trends.
Insulation Condition Variables
Insulation systems are among the most critical elements in electrical equipment.
Important insulation variables include:
- Insulation resistance.
- Dielectric losses.
- Partial discharge activity.
- Moisture content.
Changes in insulation data may indicate:
- Ageing.
- Contamination.
- Electrical stress.
- Moisture penetration.
Combining insulation-related data allows engineers to determine whether deterioration is:
- Normal ageing.
- Progressive damage.
- Immediate failure risk.
Environmental Variables
Environmental conditions significantly influence electrical system performance.
Relevant variables include:
- Temperature.
- Humidity.
- Dust levels.
- Chemical exposure.
- Moisture.
Environmental factors may accelerate:
- Corrosion.
- Insulation degradation.
- Connection deterioration.
- Material breakdown.
For example:
A switchgear failure in a humid industrial environment may involve:
- Moisture contamination.
- Reduced insulation strength.
- Electrical tracking.
Operational Variables
Operating conditions provide important context for test result interpretation.
Operational variables include:
- Equipment loading.
- Operating hours.
- Switching frequency.
- Duty cycle.
A component operating continuously under high load may experience faster degradation compared with equipment operating under normal conditions.
Principles of Failure Root Cause Identification
Understanding Failure Mechanisms
Failure mechanism analysis is the foundation of effective root cause identification.
Common electrical failure mechanisms include:
Insulation Breakdown
Caused by:
- Electrical stress.
- Thermal ageing.
- Moisture.
- Contamination.
Indicators include:
- Increased partial discharge.
- Reduced insulation resistance.
- Dielectric changes.
Thermal Failure
Caused by:
- Excessive current.
- Poor connections.
- Cooling problems.
Indicators include:
- Hot spots.
- Increased resistance.
- Abnormal temperature patterns.
Electrical Discharge Failure
Caused by:
- Insulation defects.
- Air gaps.
- Contaminants.
Indicators include:
- Partial discharge activity.
- Acoustic signals.
- Abnormal electrical patterns.
Analysing Relationships Between Test Results
Individual test results may not provide enough information to determine the failure cause.
Engineers must analyse relationships between variables.
Examples:
Relationship Between Temperature and Resistance
A rise in temperature combined with increased resistance may indicate:
- Poor electrical connection.
- Contact deterioration.
Relationship Between Partial Discharge and Insulation Performance
Increasing partial discharge with decreasing insulation resistance may indicate:
- Progressive insulation failure.
Relationship Between Power Quality and Equipment Performance
Voltage disturbances combined with equipment overheating may indicate:
- Electrical supply problems.
Identifying Failure Patterns
Failure patterns help engineers understand how problems develop over time.
Important patterns include:
- Gradual deterioration.
- Sudden abnormal changes.
- Repeated fault occurrences.
- Performance decline trends.
Pattern analysis helps determine:
- Failure progression.
- Risk level.
- Required intervention.
Evaluating Contributing Factors
Failures usually involve multiple contributing factors.
Engineers evaluate:
- Design issues.
- Installation quality.
- Operating conditions.
- Maintenance history.
- Environmental conditions.
A complete investigation considers all possible influences.
Process of Synthesising Testing Variables
Step 1: Collecting Multidimensional Test Data
The first stage involves collecting information from multiple sources.
Data may include:
- Electrical test results.
- NDE inspection reports.
- Condition monitoring records.
- Maintenance history.
- Operational information.
Engineers ensure:
- Data completeness.
- Measurement accuracy.
- Testing consistency.
Step 2: Validating Testing Information
Before analysis, data quality must be confirmed.
Validation includes:
- Checking equipment calibration.
- Reviewing testing procedures.
- Confirming environmental conditions.
- Verifying measurement accuracy.
Reliable conclusions require reliable information.
Step 3: Correlating Different Data Sources
Data correlation involves comparing information from different testing methods.
Examples:
Transformer investigation:
- Partial discharge data.
- Temperature trends.
- Insulation results.
Cable investigation:
- Insulation measurements.
- Partial discharge activity.
- Operating history.
Correlation helps identify relationships between symptoms and causes.
Step 4: Identifying Abnormal Relationships
Engineers search for unusual combinations of results.
Examples:
- Increased temperature + increased resistance = possible connection problem.
- Increased discharge + reduced insulation strength = insulation deterioration.
- Voltage instability + equipment stress = power quality issue.
Step 5: Determining Root Cause
The final stage involves establishing the most probable failure origin.
The engineer evaluates:
- Evidence strength.
- Failure mechanism.
- Risk impact.
- Prevention opportunities.
Advanced Electrical Failure Analysis Techniques
Partial Discharge Data Correlation
Partial discharge analysis becomes more powerful when combined with other variables.
Engineers evaluate:
- Discharge magnitude.
- Discharge pattern.
- Location.
- Insulation condition.
This helps identify:
- Internal insulation defects.
- Ageing processes.
- Potential failure progression.
Thermal Pattern Analysis
Thermal analysis identifies abnormal heat behaviour.
Engineers compare:
- Current thermal images.
- Historical thermal data.
- Equipment loading.
Possible root causes include:
- Poor connections.
- Excessive current.
- Cooling problems.
Insulation Degradation Assessment
Insulation analysis combines:
- Resistance measurements.
- Dielectric data.
- Partial discharge results.
This helps determine:
- Insulation health.
- Ageing condition.
- Failure probability.
Power Quality Analysis
Power quality data helps identify system-related problems.
Analysis includes:
- Voltage variation.
- Harmonic distortion.
- Current imbalance.
Possible root causes include:
- Supply instability.
- Incorrect loading.
- Equipment interaction problems.
Root Causes of Common Electrical System Failures
Insulation Failure
Possible causes:
- Ageing materials.
- Electrical stress.
- Moisture.
- Contamination.
Detection methods:
- Partial discharge testing.
- Insulation diagnostics.
- Dielectric analysis.
Overheating Problems
Possible causes:
- Loose connections.
- Overloading.
- Poor cooling.
Detection methods:
- Infrared thermography.
- Resistance testing.
Electrical Discharge Failures
Possible causes:
- Insulation weakness.
- Internal voids.
- Contamination.
Detection methods:
- Partial discharge monitoring.
- Ultrasonic inspection.
Component Ageing
Possible causes:
- Long service life.
- Repeated thermal cycles.
- Environmental exposure.
Detection methods:
- Condition monitoring.
- Trend analysis.
Maintenance-Related Failures
Possible causes:
- Incorrect maintenance procedures.
- Poor installation practices.
- Inadequate inspection frequency.
Detection methods:
- Historical review.
- Performance analysis.
Professional Comparison Table: Testing Variables and Root Cause Identification
| Testing Variables | Related Failure Cause | Analysis Approach | Possible System Impact |
|---|---|---|---|
| Temperature rise and thermal patterns | Overheating or poor connections | Compare thermal trends with loading data | Equipment damage and reduced reliability |
| Partial discharge activity | Insulation deterioration | Analyse discharge patterns and insulation condition | Electrical breakdown risk |
| Insulation resistance reduction | Moisture or ageing | Compare historical insulation performance | Increased failure probability |
| Voltage and current variation | Power quality problems | Evaluate electrical supply behaviour | Equipment stress and malfunction |
| Condition monitoring trends | Progressive degradation | Analyse long-term performance changes | Unexpected equipment failure |
Practical Examples
Example 1: Transformer Failure Root Cause Investigation
A power transformer showed increasing temperature levels during operation.
Initial observation:
- Higher operating temperature.
Further analysis included:
- Thermal imaging.
- Partial discharge testing.
- Insulation assessment.
Findings:
- Increased thermal stress.
- Reduced insulation performance.
- Developing internal degradation.
Root cause:
- Progressive insulation deterioration combined with cooling limitations.
Corrective action:
- Maintenance intervention.
- Improved monitoring strategy.
Example 2: High Voltage Cable Failure Analysis
An underground cable system experienced repeated faults.
Testing variables included:
- Insulation resistance.
- Partial discharge results.
- Environmental conditions.
Analysis identified:
- Moisture penetration.
- Insulation degradation.
Root cause:
- Environmental exposure affecting insulation performance.
Corrective action:
- Cable section replacement.
- Improved protection measures.
Example 3: Switchgear Fault Diagnosis
A switchgear assembly showed abnormal heating.
Testing identified:
- Increased connection temperature.
- Electrical discharge activity.
Root cause:
- Poor connection quality causing increased resistance.
Corrective action:
- Connection repair.
- Verification testing.
Case Study: Root Cause Identification Through Testing Variable Synthesis
Project Background
An industrial facility experienced repeated interruptions from a critical electrical distribution system. Initial inspections identified abnormal operating behaviour, but the exact cause remained unclear.
The equipment included:
- High-voltage transformer.
- Switchgear system.
- Distribution cables.
Data Synthesis Process
Engineers collected:
- Thermal imaging results.
- Partial discharge measurements.
- Insulation test data.
- Maintenance records.
The analysis process involved:
- Comparing current and historical results.
- Identifying relationships between variables.
- Evaluating possible failure mechanisms.
Root Cause Identification
The investigation revealed:
- Increased transformer temperature.
- Growing partial discharge activity.
- Reduced insulation performance.
The root cause was identified as:
- Progressive insulation deterioration accelerated by thermal stress.
Corrective Engineering Actions
Actions included:
- Transformer maintenance.
- Improved cooling assessment.
- Increased condition monitoring.
Final Outcome
The facility achieved:
- Reduced failure risk.
- Improved equipment reliability.
- Better predictive maintenance capability.
Key Benefits of Effective Root Cause Identification
Effective synthesis of testing variables provides:
- Early failure detection.
- Improved reliability.
- Reduced downtime.
- Better maintenance planning.
- Enhanced safety.
- Reduced operational costs.
- Improved engineering decision-making.
Best Practices for Electrical QA/QC Professionals
Electrical QA/QC Engineers should:
- Analyse multiple variables together.
- Avoid relying on single test results.
- Understand equipment failure mechanisms.
- Use historical comparisons.
- Consider operational conditions.
- Evaluate environmental influences.
- Maintain accurate testing records.
- Apply structured RCA methodologies.
Conclusion
Identifying the root causes of potential electrical system failures requires advanced analysis of interacting testing variables. Modern electrical systems generate complex diagnostic information, and effective failure investigation depends on the ability to synthesise data from multiple sources.
Senior Electrical QA/QC Engineers must evaluate relationships between electrical, thermal, insulation, environmental, and operational variables to determine the true origin of developing problems. Through systematic root cause analysis, engineers can distinguish symptoms from actual causes, predict future failures, and implement effective corrective actions.
The ability to synthesise advanced testing variables improves electrical system reliability, reduces unexpected failures, enhances safety performance, and supports long-term asset management. By applying professional engineering judgement and evidence-based analysis, organisations can maintain safer, more efficient, and more reliable electrical infrastructure.
